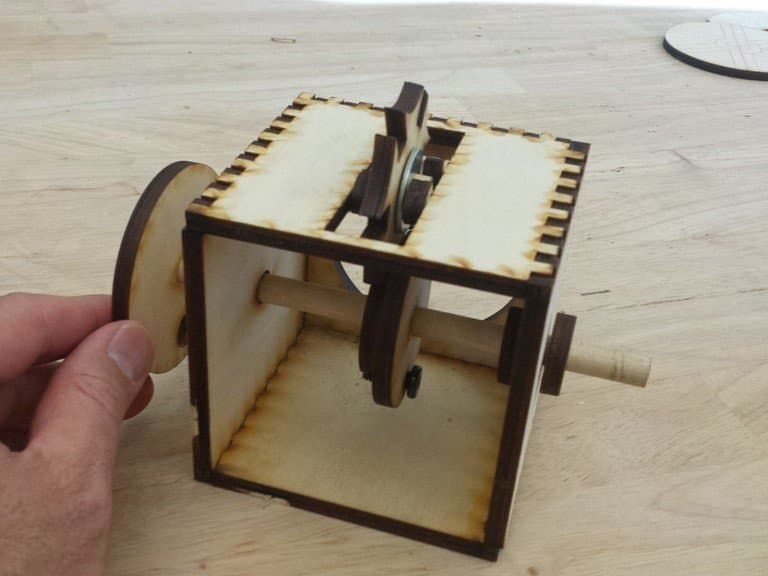

Mechanical Geneva Drive Mechanism Laser Cut File (DXF, SVG)

Mechanical Geneva Drive Mechanism Laser Cut File (DXF, SVG)

Explore the wonders of mechanical engineering with this functional Geneva drive mechanism. This laser-cut project demonstrates precise intermittent motion, perfect for educational displays or kinetic desktop art. Designed for 3mm plywood or MDF, these files are available in DXF, SVG, and CDR formats for easy cutting. Build your own working model and learn how rotational energy is converted into indexed movement.
Laser CutDIYCNC ProjectsMechanicalEngineeringGearboxSTEMKineticGeneva DriveWorking Model
